delta

Automatic Delivery

delta - Automatic Delivery

With the new automatic delta-pro delivery the focus is on higher productivity with lower personnel costs.

Sturdy, easy-to-handle stacks ensure effective removal to subsequent processing machines.

delta502pro

The delta is a fully automatic, stack-forming delivery system (also known as a "stacker") that streamlines the production process. Here, rationalisation is key, not bundling the packages. By using a delta at a folding machine only one operator will be required. Also, at saddle stitchers, one person can remove the stack cost-effectively even with 2-up or 3-up production and all at full running capacity. Handling the packages is quick and easy, even for in-house transfer from the folding machine to the saddle stitcher. The band merely serves as a means of relocating the products quickly, simply and efficiently.

The delta sets new standards for speed, format range and user-friendliness. With its 600 packages per hour per product stream, it puts all previous machines in the shade. With the tandem version up to 3,600 packages per hour can be processed.
Trouble-free sealing of the band is ensured with the sturdy, reliable electronic impulse welding system (EIS). Bundling is only carried out in the shaft in which the products are collected. This patented process ensures that even products which spread out at the binding edge, are slippery and are uneven can be processed neatly.

(If you only get one stream from your upstream production machine and still want to produce optimally, please take a look at our double-up module.)


Currently available machines / Used machines / Customer references

technical data based on versions



common technical data

min. infeed height 400 mm
max. infeed height 1,050 mm
interface palamides Standard
compressed air comsumption 450 l/min
Issue of the products right
links
in running direction
back to the operator
Ø setup time

10-15 minutes (for single-up production)

coupling

(optional)

MBO 24polig, Navigator, M1
HEIDELBERG TF, TH, TD, TI
GUK
Matthias Bäuerle (MB)
Horizon
Shoei
Magnum
Saddle stitcher
Collating machine
Rotative machine
Rotative punching
Other aggregates via stop linkage

Additional information

A cardboard feeder is also aviable as an option that cannot be retrofitted. The carton protects the edges and is ideally suited for products which are further processed in mailing systems. Instead of cartons, price lists, info sheets etc. can also be integrated into the package.

Additional information

up to A3 formats

outline

Automatic ejection of misfolded sheets

Single sheet processing

banding

counters

mobil

automatic waste lock

format control

cup holders

Output of the products to the left

vibrating device

pressing station

automatic format control

loop stitch device

selective output table

camera

antistatic device

tandem module

air blast device

suitable for inline processing

extended buffer table

barcode

stack leveling

separating module

edge control

Small format device

play_circle_outline

Finishing Manager Mark Flinn about the delta.

play_circle_outline

Allied Printing Services - Since more than 20 years they are using palamides deliveries - find out why.

play_circle_outline

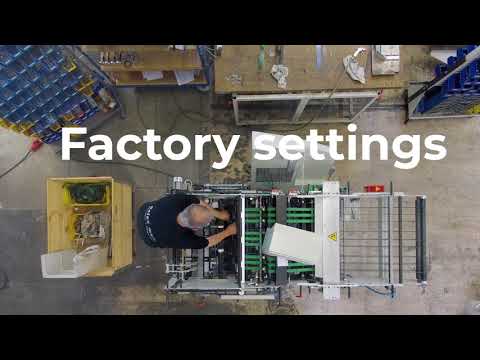

Reprocessing of a delta703
