gamma

perfect for digital printing

gamma - highly efficient and flexible at a low price

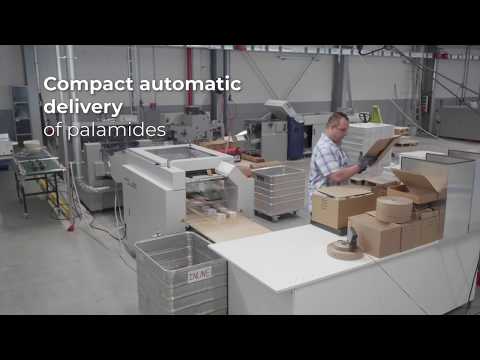

With the gamma-pro automatic delivery, you can rely on higher productivity at lower personnel costs. Sturdy, easy-to-handle stacks ensure effective disposal to finishing machines. The gamma-pro is a mobile delivery with a small ground-plan that can be easily set up on folding machines, saddle stitchers, gathering machines, mailers, etc.

gamma502pro

Product stacks that slip easily can be strapped automatically with a 50 mm paper banding (optional 30 mm). This allows the operator to quickly and efficiently place stacks in cartons or on pallets. Of course, the banding can be switched off at any time to lay out loose stacks.


The gamma-pro is equipped with the proven palamides components and has been designed for companies that have little space and quickly changing jobs. No matter if internet printing or small business. No matter if 4 pages or 10 mm booklet. No matter whether with 80,000 flyers/h in double-up or with 3,000 staples in single-up! The products are transferred from the predecessor machine, pressed, counted, measured, stacked, banded on request, and laid out on a buffer table in running direction. The gamma can lay out up to 600 bundles/h per label (total up to 1,800 bundles/h).


The robust and reliable electronic impulse sealing process (EIS) ensures trouble-free sealing of the sleeve. Banding takes place exclusively in the shaft in which the products are collected. This patented process ensures that even products that are strongly applied, smooth and uneven can be processed neatly.


Currently available machines / Used machines / Customer references

technical data based on versions



common technical data

min. infeed height 650 mm
max. infeed height 1,000 mm
interface 24-polig
compressed air comsumption 350 l/min
Issue of the products straight
Ø setup time

4-8 minutes (for single-up production)

coupling

(optional)

MBO 24polig, Navigator, M1
HEIDELBERG TF, TH, TD, TI
GUK
Matthias Bäuerle (MB)
Horizon
Shoei
Magnum
Saddle stitcher
Collating machine
Rotative machine
Rotative punching
Other aggregates via stop linkage

Additional information

The output table can be collapsed upwards.

Available as special machine for thick products (2-10mm)

Additional information

With the "delivery lifting"-kit for extra high infeed height (e.g. for gathering machines such as T&B and MKW):
Infeed height min: 760 mm
Infeed height max: 1270 mm

outline

pressing station

format control

Automatic ejection of misfolded sheets

Side vibrators can be operated from the outside

automatic set-up in running direction

Adjusting the side vibration from the outside

automatic format control

banding

automatic waste lock

vibrating device

Automatic ejection of misfolded sheets

antistatic device

air blast device

19

Small format device

play_circle_outline

Impressions of use

play_circle_outline

gamma behind Muller Martini Saddle Stitcher

play_circle_outline

gamma behind Horizon MARK3, HEIDELBERG Stahlfolder and Muller Martini Saddle Stitcher

play_circle_outline

reasons to use it

play_circle_outline

Customer reference: gamma behind Müller Martini stichliner for a more efficient production.

play_circle_outline

Customer reference: Optimized finishing with the gamma-pro

play_circle_outline

Customer reference: Machinery in line with gamma-pro

play_circle_outline

Customer reference: gamma-pro optimizes quantity and quality

play_circle_outline

The right table according to your requirements.

play_circle_outline

The TB flex S 204 automatik (Theissen&Bonitz), in combination with the palamides gamma-pro.
