Automatic Sheet Stacker

mitra - Automatic Sheet Stacker

With the Automatic Sheet Stacker mitra all kinds of single sheets, blanks, die cuts etc. can be stacked and buffered - up to 6 parallel streams of flat sheets (6 UPs).

The mobile delivery can be lined up with any production line for single sheets, dies, blanks etc. – even for multiple up production.

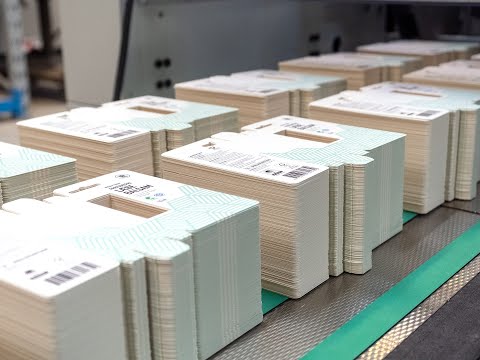

The mitra accepts shingle streams alternatively single sheet production. After spreading the streams the mitra counts the sheets and stacks them to perfect blocks. As well dies with individual shapes can be stacked perfectly.

By reaching the selected quantity, the stacks will be delivered into running direction.

Optionally, the product stream can also be separated by barcode recognition, a print mark or an external signal. Thus, for example, different book blocks can be separated - without interrupting production.

A large output table buffers the stacks. The stacks can be removed efficiently and easily from ergonomically favourable heights. As an option, the stacks can also be automatically transferred to a transport section in order to convey the stacks directly into an adhesive binder, for example.

The mitra offers the optimal solution for automated delivery on different production lines such as digital printing machines, cross cutters, die cutters, etc. even at high speeds!

technical data based on versions



common technical data

interface 24-polig
compressed air comsumption 200 l/min
Issue of the products straight
Ø setup time

5-15 minutes (for single-up production)

coupling

(optional)

MBO 24polig, Navigator, M1
HEIDELBERG TF, TH, TD, TI
GUK
Matthias Bäuerle (MB)
Horizon
Shoei
Magnum
Saddle stitcher
Collating machine
Rotative machine
Rotative punching
Other aggregates via stop linkage

Additional information

Suitable for lightweight printing and packaging printing

outline

automatic format recognition

Single sheet processing

mobil

counters

vibrating device

suitable for inline processing

automatic waste lock

antistatic device

air blast device

barcode

camera

edge control

play_circle_outline

Stacking with small aluminium package products

play_circle_outline

mitra with 87,000 p/h.
