The Automatic Delivery

pharma - The Automatic Delivery

The delivery was specially developed for pre-folding in the pharmaceutical industry.

The operator receives nicely jogged stacks in a very precise edge-accurate quality. As a rule, the stacks are checked for quality by the operator, provided with top and bottom cardboard, usually banded twice, shrink-wrapped, then covered with a label and placed on pallets.

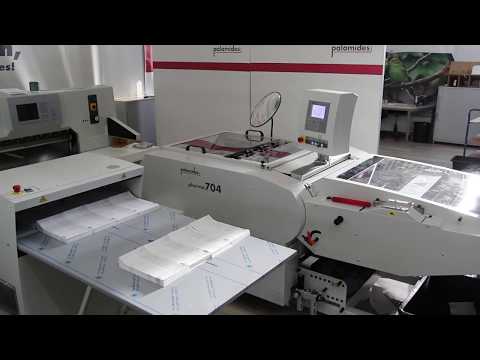

Companies working with the pharma704 increased their net output by up to 100%.

The most time-consuming operation in the production of pharmaceutical pre-folds is the jogging of the stacks. A high degree of skill is required from the operator, as the stacks usually consist of 250 or 500 folded products and have a very low grammage (38-50gr). The pharma704 reduces this effort to an absolute minimum.





technical data based on versions



common technical data

min. infeed height 500 mm
max. infeed height 1,050 mm
interface 24-polig
compressed air comsumption 200 l/min
Issue of the products right
links
in running direction
back to the operator
Ø setup time

10 - 30 minutes (for double-up production)

coupling

(optional)

MBO 24polig, Navigator, M1
HEIDELBERG TF, TH, TD, TI
GUK
Matthias Bäuerle (MB)
Horizon
Shoei
Magnum
Other aggregates via stop linkage





Additional information

Also suitable for very low grammages (38-50gr)

Additional information

With optional small format device: 90 mm infeed width x 120 mm infeed length

With optional large format device: 195 mm infeed width x 350 mm infeed length

outline

antistatic device

stack leveling

automatic format recognition

barcode

camera

suitable for inline processing

edge control

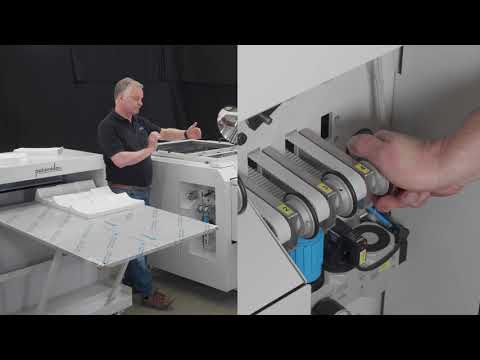

Small format device

play_circle_outline

Stacks in a very precise edge-accurate quality.
